Features
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display；
4. Separating speed is adjusted by a rotary knob；
5. Handle Intermittent scoring or cut-outs；
6. Board with projected component can be cut precisely；
7. Large stainless steel platform on both side of cutting lade prevents board wobble
and table height and angle are adjustable；

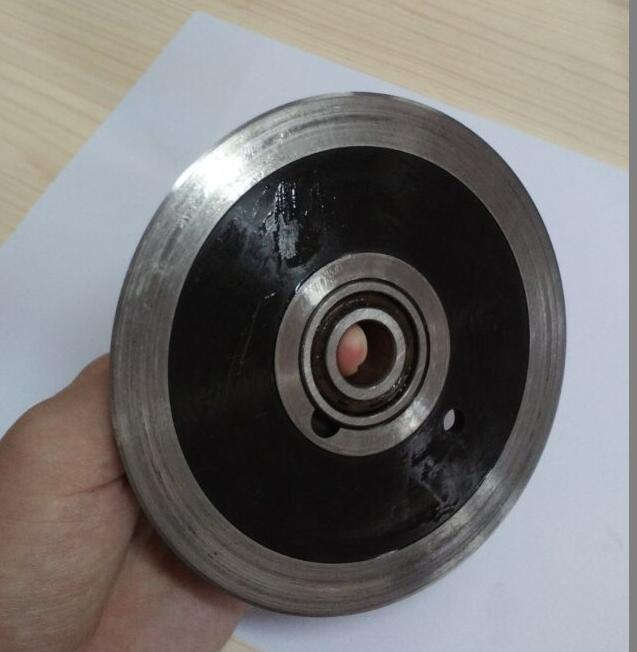

8. Clearance between circular and linear blades are adjustable to fit different groove
depth and compensates for blade wear out.
Application:
Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly,
effectively quickly. Easy to operate and causing no damdage to components on
boards. Imported high- speed steel blade with long service life, mainly applied in
circuit board industries such as led, SMT, etc.
| YSV-1A Specifications |
| Model | YSV-1A |
| Max Cutting Length | 460mm or 600mm |
| Dimension | 740*550*460mm or 880*420*320mm(L*W*H) |
| Cutting pooint | 0-100-200-300-400mm |
| Cutting Speed | 300mm/s ,500mm/s |
| Cutter point angle | 26~28° |
| Conveyor Belt (Options) | 1.5 m |
| Cutting thickness | 0.6-5.0mm |
| Minimum component distance from v-groove | 1mm |
| Voltage | 220 V or 110V, 50/60HZ, 250W |
| Max component height | 30 mm |
| Machine weight | 65kg / 85kg |
| Machine Warranty period | 1 year |
